5-axis CNC machining is an advanced manufacturing technology that uses a computer numerical control system to simultaneously control the movement of five axes of the tool or workpiece to achieve high-precision machining of complex parts.

Customized 1-100000 pieces of precision parts
Direct processing by the factory is cheap
Flexible for Low-volume manufacturing

5-axis CNC machining ensures more precision and higher speed

Customized 1-100000 pieces of precision parts
Direct processing by the factory is cheap
Flexible for Low-volume manufacturing

Advanced Surface Finishing for Precision CNC Components

Customized 1-100000 pieces of precision parts
Direct processing by the factory is cheap
Flexible for Low-volume manufacturing

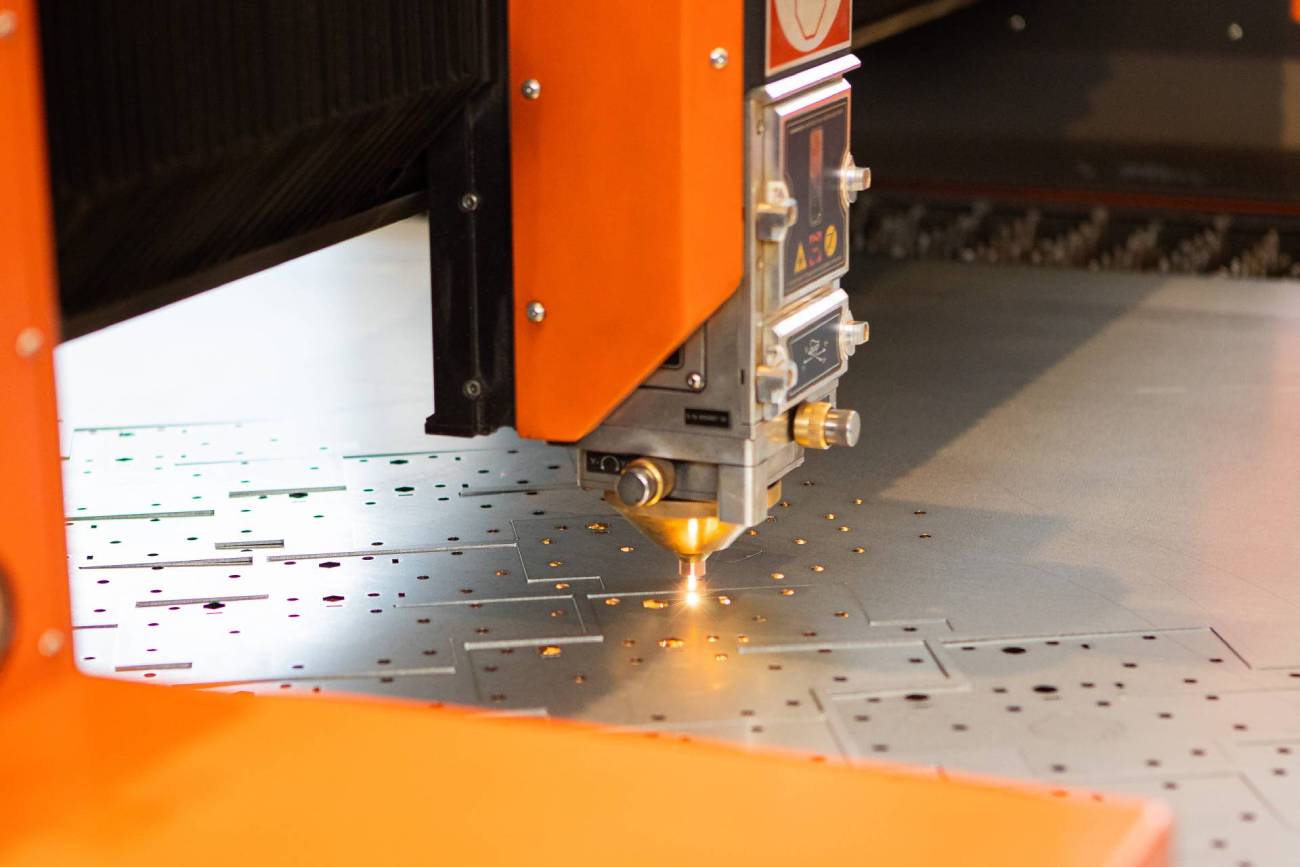

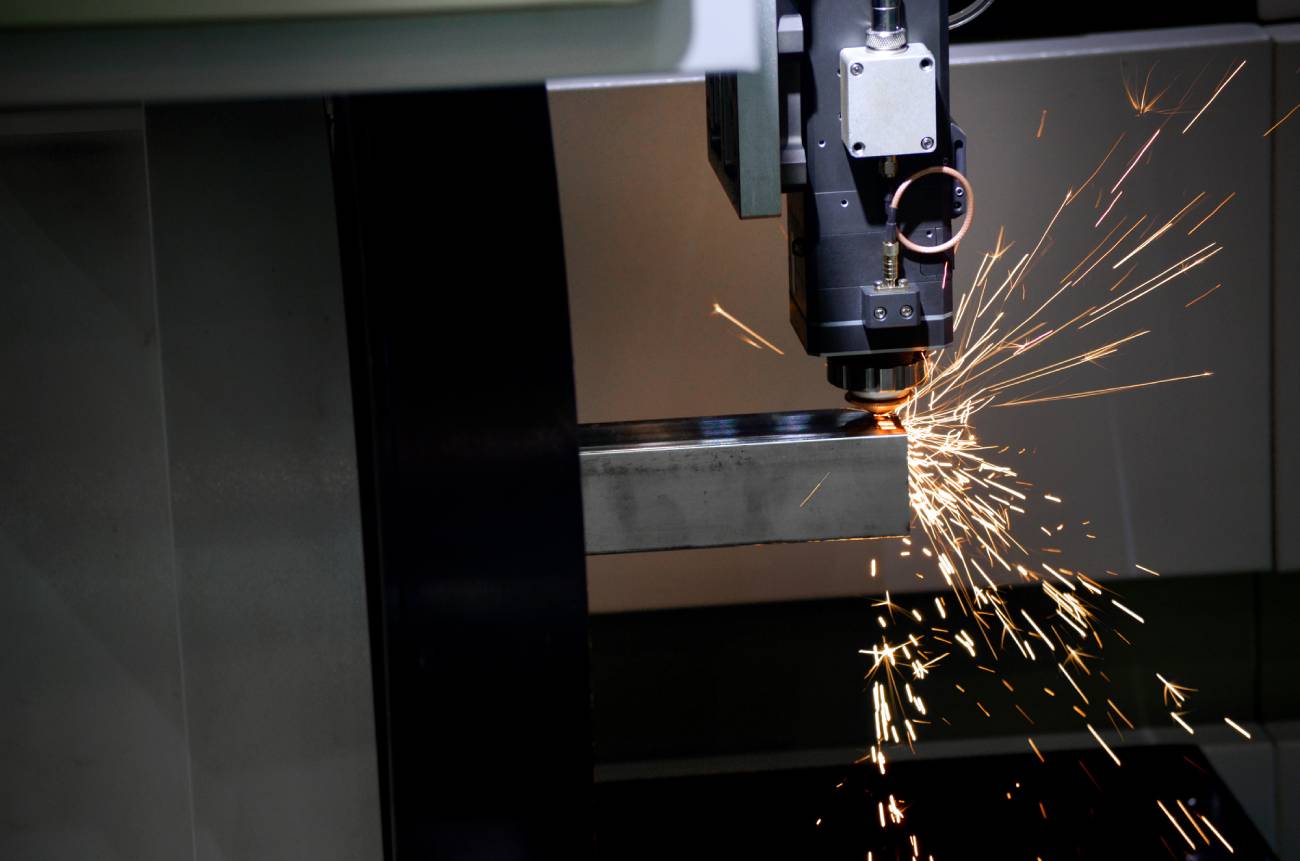

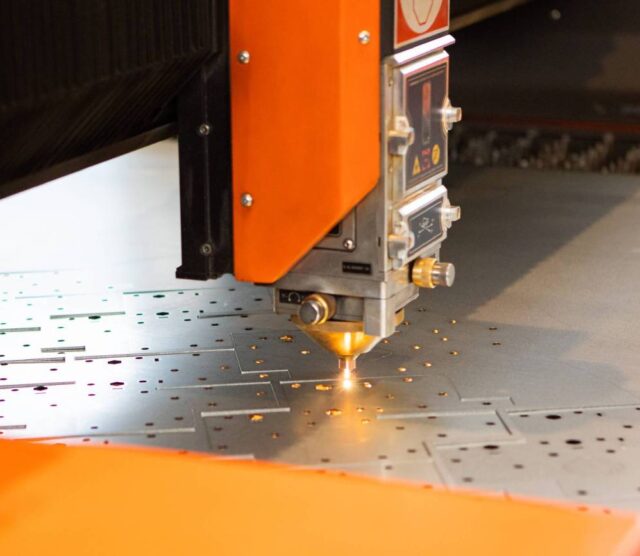

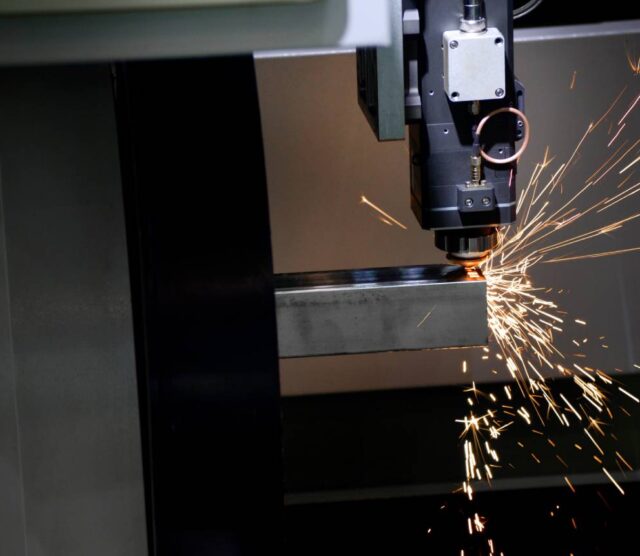

Laser Cutting of Metal Ensures Precision and Efficiency

Customized 1-100000 pieces of precision parts
Direct processing by the factory is cheap
Flexible for Low-volume manufacturing

about hubsteel

At HubSteel, we have harnessed the power of machine learning algorithms to transform the way you select manufacturers for your projects, from prototypes to series production.

find out more

Quality precision machined components, every time

about hubsteel

At HubSteel, we have harnessed the power of machine learning algorithms to transform the way you select manufacturers for your projects, from prototypes to series production.

find out more

Consistent deliveries that meet your deadlines, no exceptions

about hubsteel

At HubSteel, we have harnessed the power of machine learning algorithms to transform the way you select manufacturers for your projects, from prototypes to series production.

find out more

A UK-based machining partner that values your success

happy customer

1 %

completed projects

0 k

company value

60 M

human resources

500 +

Materials and Surface Treatment

Our ability to handle a wide range of materials in CNC machining comes from
extensive experience, advanced machinery and highly skilled staff.

Metal

Plastic

Surface Treatment

Our Capabilities

Lorem ipsum dolor sit amet. Et laboriosam possimus et quidem odit in expedita autem,

Equipment & Tools Max Available Size Tolerance Surface Finishing

Our hardware configuration is as follows

Device name	Quantity (units)	Production place	Brand	Machine tool（mm）
5-axis machining center	2	Japan	Mazak	0.01
Turn-milling compound	4	Japan	Mazak	0.005
Low-speed wire-cutting	2	Japan	Sodick	0..01
CNC lathe	4	USA	Hardinge	0.002
High speed machining center	3	Taiwan	JIATIE	0.002
Small grinding machine	2	Taiwan	YUTON	0.003
Swiss-type lathes	6	France	Citizen	0.002
Low-speed wire-cutting	4	Japan	Sodick	0.005
EDM	5	Japan	Citizen	0.003

The maximum size of the parts we can process depends on the maximum stroke of the equipment, the following is the stroke data table of our equipment.

Processing	Travel range
CNC Machining Center(3-axis / 4-axis / 5- axis)	1000500500mm / 850 * 500 * 500mm
CNC Lathe	Ø430mm，Length 1200mm
CNC Milling Machine	600 * 500mm / 800 * 400mm
Manufacturing Capacity	1 – 2000pcs parts/day
Accuracy	Accuracy: Lathe ±0.01 mm, Milling machine ±0.005 mm
End mill	Diameter 1 – 20 mm
Face milling cutter	Diameter 50 – 200 mm
Spindle speed	600 – 20,000 RPM
Machining accuracy	±0.005 mm

Unless we follow the tolerances required in the customer’s drawings, we will strive to achieve and maintain the following tolerances, which will vary depending on your choice of primary machining. (Example: round hole 10mm, tolerance +0.01—0.03mm)

Dimension Range (mm)	Fine (F) +/-	Medium (M) +/-	Coarse (C) +/-	Very Coarse (V) +/-
0.5-3	0.01	0.05	0.1	—
3-6	0.03	0.1	0.15	0.5
6-30	0.05	0.15	0.3	1.0
30-120	0.1	0.3	0.5	1.5
120-400	0.2	0.5	1.2	2.5
400-1000	0.3	0.8	2.0	4.0
420-1100	0.2	0.9	2.1	4.5
450-1300	0.4	0.6	3.0	5.0
470-1400	0.5	0.7	2.0	4.0

Surface finishing improves durability, corrosion resistance, aesthetics, friction reduction and surface quality for coatings.

Name	Applicable materials	Color	Can Be Applied with
As machined	Aluminum, Steel, Stainless Steel	Ra 0.8μm – Ra 3.2μm	All post processes
Anodizing	Aluminum	Clear, black, grey, red, blue, gold	Bead blasted, Tumbling, Chem film*
Bead blasted	Aluminum, Copper, Mild steel	Coarse sand #16 #20 #30	All post processes
Black Oxide	Steel, Stainless Steel	—	Bead blasted, Tumbling, Passivation
Electroless Nickel Plating	Aluminum, Steel, Stainless Steel	—	Bead blasted, Tumbling
Electropolishing	Steel, Stainless Steel	—	—
Passivation	Steel, Stainless Steel	—	Black Oxide, Electroless Nickel Plating
Tumbling	Aluminum, Steel, Stainless Steel	—	All post processes
Zinc Plating	Steel, Stainless Steel	—	Bead blasted, Tumbling, Passivation
Chrome Plating	Stainless Steel, Nickel Alloy	Chromium, black chromium	—
Brushed	Stainless Steel, Aluminum Alloy	Small brushed 6.5-8mm/2.0-4.0mm	—
Nano coating	For applicable material processing	Full Coating or RAL color catalog	—

Multi Axis Advanced CNC Machining Specialists

outstanding project

Outstanding Projects Make Our Name In The Domestic And International Markets.

Since 2007, Witcool has been specializing in manufacturing precision CNC machined components. With an experienced team, we handle small, medium and large orders using reliable CNC technology and a combination of manual and automatic machines.

view all projects

Upload a CAD File

Et error corporis aut voluptatem earum est repudiandae ullam id ullam libero ut debitis. Facilisis accumsan per congue.

Get Quote with DFM

Et error corporis aut voluptatem earum est repudiandae ullam id ullam libero ut debitis. Facilisis accumsan per congue.

Manufacturing Begins

Et error corporis aut voluptatem earum est repudiandae ullam id ullam libero ut debitis. Facilisis accumsan per congue.

Parts are Shipped!

Et error corporis aut voluptatem earum est repudiandae ullam id ullam libero ut debitis. Facilisis accumsan per congue.

Join 6400+ Similar Companies Using HubSteel For High Quality Parts.

Are you looking for a reliable and long-term partner in the future? Contact Alpha Tech to receive a detailed quote!

Instant pricing & lead-time options

CNC Machining, Urethane Casting, Injection Molding

Support from technical manufacturing experts

Contact HubSteel crown for a quick quote.

+97 155 596 1659 / +97 054 888 1806

Support.hubsteel@gmail.com / Hubsteelindustrial@gmail.com

For your 3D model, we accept these file formats: STL (.stl), STEP (.stp), IGES (.igs), or (.ZIP)
